Nokia BLS-4 Battery Discharge Curve

Nov 2002

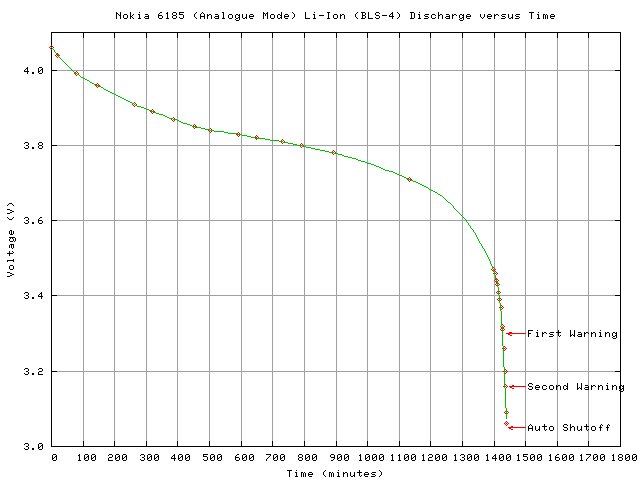

I have a Nokia 6185 cell phone with a BLS-4 battery and was curious about what the Li-ion battery's discharge curve looked like. The phone has some diagnostic screens, one of which displays battery voltage. I simply recorded this with the phone sitting idle in analogue mode. The data was graphed using gnuplot.
